About the product:
Name: |
Diamond grinding wheel, sintered grinding wheel, diamond cup wheel |
Material |
steel backed, diamond coated , sintering metal bond |
Shape |
cup, centreless or with shaft |
concentration |
150% |
Grit |
40/45# |

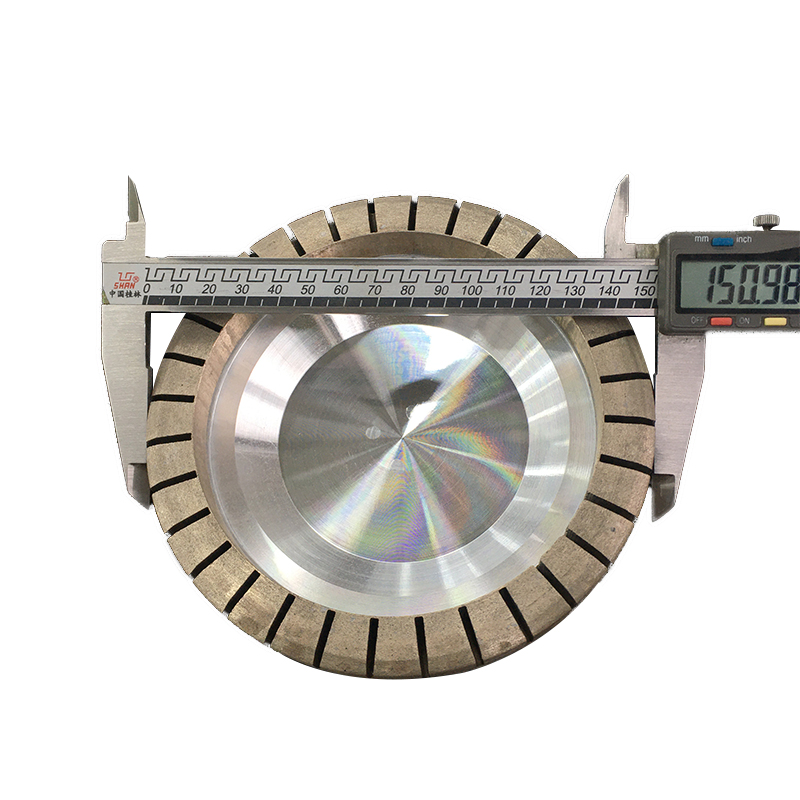

Wheel diameter |
150mm 6inch |
Hole thread size |
16mm 5/8 inch |
Overall thickness |
25mm |
Speed |
4460rpm, 35m/s |
Features |
High material removal rates |
High quality and long service life |
|
High Diamond concentration |
|
Application |
Work on the material: ceramic, stone, aluminum alloy, brake pads etc. |
Mounted on concrete grinder to grind building material like concrete, granite and marble |
|
Grinding type |
Wet / dry , Wet use recommended |
Diamond wheel is a super hard abrasive wheel. Compared with ordinary abrasive wheel, diamond wheel has very obvious characteristics and advantages.
The sintered metal bond grinding wheel is mostly made of bronze and other metals as the binder by high temperature sintering method. It has high bonding strength, good molding property, high temperature resistance, good thermal conductivity and wear resistance, long service life and can bear a large load.
Application:precision ceramics, magnetic materials, optical glass, semiconductor materials, stone materials, brake pads etc.Characteristics of diamond grinding wheel:1.The hardness of diamond abrasive determines the main characteristics of diamond grinding wheel, which can grind hard alloy, glass, ceramics and other difficult materials efficiently, and the grinding tool has a long service life.2.In grinding, the size, shape and morphology of diamond grains change little, which is more suitable for high-precision machining and has high production efficiency. Diamond grinding wheel can meet the requirements of high-efficiency and precision machining at the same time.3.The sharpened diamond grinding wheel can maintain the micro-edge property of the grinding grains for a long time, and the good cutting performance ensures the less grinding force in the grinding process, thus reducing the grinding power and saving energy.4.The sharpened diamond grinding wheel can maintain the micro-edge property of the grinding grains for a long time, and the good cutting performance ensures the less grinding force in the grinding process, thus reducing the grinding power and saving energy.
Apply to:precision ceramics, magnetic materials, optical glass, semiconductor materials, stone materials, etc.
Specialties & Customed Production
We can offer you viarious diamond grinding tools with different grit, differnt diamond concentration, and differnt formula.
If have special applications, leave us the following information:
shape | size | working layer width |
bond/binding agent/adhesive | Abrasive grain | grit designation |
diamond concentration | dry /wet grinding |
Or tell us the product or material you want to work on or your applications, then we can provide you the professional suggestions.
What you may concern:
1: Are you a factory?
Yes, we are the producer. Our main products are diamond tools, grinding wheels, cut-off discs, sanding belts, oil stones, mounted points etc.
2, Can I get free samples?
Yes, within 20USD samples, we can provide for free, but the shipment cost should be covered by the customers.
3, How to confirm the quality ?
We have the most experienced technicians and producers. You can send us the technical parameters of the product and we will produce according to your requirements. You can ask for sample for free.You can have pilot order then nomal order.
4, What about the quality controlling?
We are using the highest quality components & efficient manufacturing process.We have the strictest QC process. We are proving a high level of service for customers and distributors.We are trying to nail down the quality complaint to zero. We will make you a enjoyable experience working with us.
