Diamond Grinding/Polishing Plate 120# grit
Diamond Grinding/Polishing Plate 120# grit
About the product:
|
Name: |
electroplated diamond grinding plate |
|
Material |
Steel body, diamond coated, electroplated coated |
|
Shape |
flat |
| Grit |
120# |
|

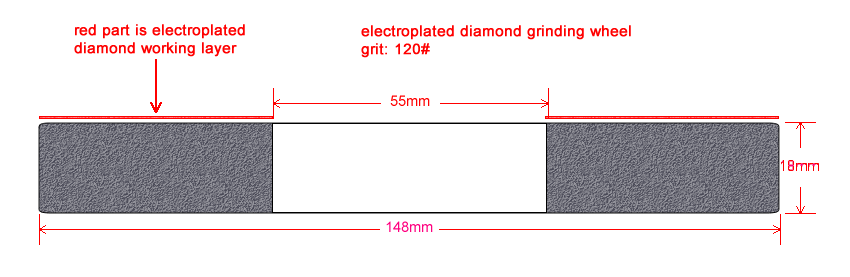

Wheel diameter |
148mm 5.8" |
|
Hole thread size |
55mm 2" |
|
Overall thickness |
18mm |
|
diamond working layer |
one side surface |
|
Speed |
15493rpm, 80m/s and more |
|
Features |
abrasive particles protruded |
|
high efficiency |
|
|
less thermal damage |
|
|
Application |
stone,ceramics, glass, jade, semiconductors, and cemented carbide materials, etc. |
|
Grinding type |
Wet / dry both |
Electroplated diamond grinding wheel is made of the diamond as abrasive by electrodeposition of metal. Electroplated diamond tools have the diamond particles protruded from the surface, so that electroplated diamond wheels have the maximum abrasive particle exposure.
Electroplated diamond grinding wheel has the advantage of :
1> suitable for manufacturing thin thickness discs, suitable for fine cutting;
2> with minimum heat generation, no damage to the workpiece;
Electroplated diamond grinding wheel tools are widely used for grinding stone,ceramics, glass, jade, semiconductors, and cemented carbide materials, etc.
Diamond grinding wheel can be used with Dremel rotary tool, angle grinder, bench grinder, etc.
Specialties & Customed Production
Our diamond-plated wheels have many advantages. We can offer you electroplated diamond wheels with aggressive bond, lower costs, high performance, and longer cycle time. We offer you excellent customized service.
If have special applications, leave us the following information:
|
shape |
size |
working layer width |
| grit designation |
diamond concentration |
And tell us the product or material you want to work on or your applications, then we can provide you the professional suggestions.
What you may concern:
1: Are you a factory?
Yes, we are the producer. Our main products are diamond tools, grinding wheels, cut-off discs, sanding belts, oil stones, mounted points, etc.
2, Can I get free samples?
Yes, within 20USD samples, we can provide for free, but the shipping cost should be covered by the customers.
3, How to confirm the quality?
We have the most experienced technicians and producers. You can send us the technical parameters of the product and we will produce according to your requirements. You can ask for a sample for free. You can have a pilot order then normal order.
4, What about quality control?
We are using the highest quality components & an efficient manufacturing process. We have the strictest QC process. We are proving a high level of service for customers and distributors. We are trying to nail down the quality complaint to zero. We will make you an enjoyable experience working with us.
